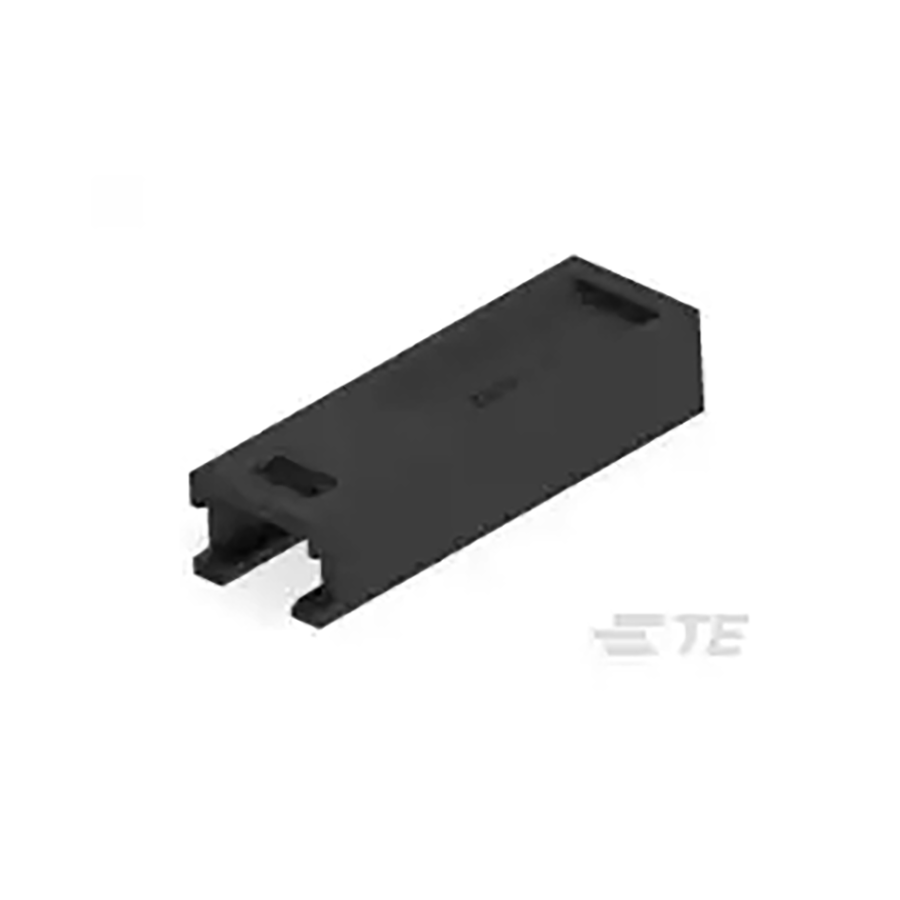

280628
Manufacturer:
TE Connectivity
Mfr.Part #:
280628
Datasheet:
Description:
Headers and Wire Housings Free Hanging Pin, Plug Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.1 mm |
| Width | 5 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Height | 3.048 mm |
| Packaging | Bulk |
| Depth | 23.8 mm |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94V-1 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 2 |
| Connector Type | Pin, Plug |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 22 AWG |
| Housing Color | Black |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Mating Retention | With |
Stock: 80
Distributors
pcbx
pcbxUnit Price$0.57504
Ext.Price$0.57504
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.57504 | $0.57504 |
| 10 | $0.46464 | $4.64640 |
| 25 | $0.42770 | $10.69250 |
| 50 | $0.39370 | $19.68500 |
| 100 | $0.36239 | $36.23900 |
| 300 | $0.32706 | $98.11800 |
| 500 | $0.29517 | $147.58500 |
| 1000 | $0.27985 | $279.85000 |
